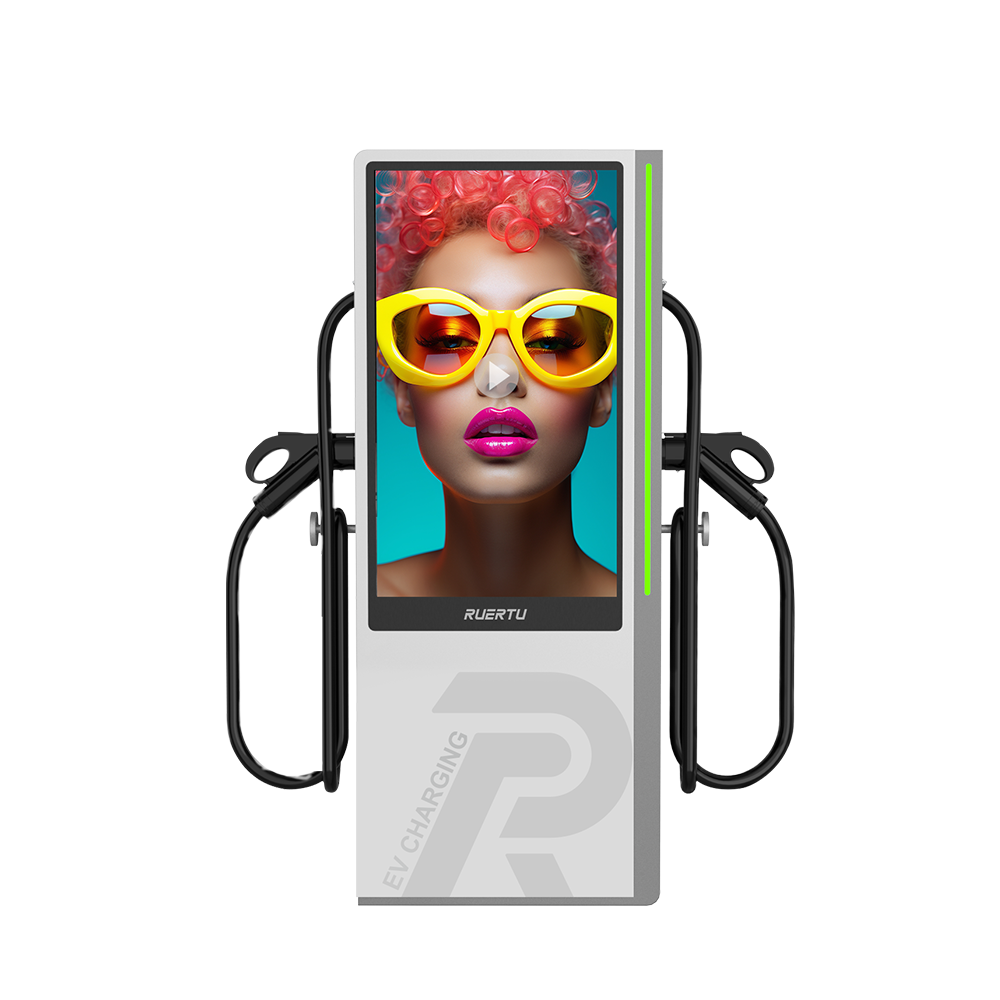

RUERTU RWDA 60kW DC EV Charger with 43-inch Advertising Screen
RUERTU RWDA 60kW DC EV Charger with 43-inch Advertising Screen
RUERTU RWDA 60kW DC EV Charger with 43-inch Advertising Screen
ecom-no-replace-SLJMUx8mHTrevews-1
20 reviews

RUERTU RWDA 60kW DC EV Charger with 43-inch Advertising Screen

$10,000.00

RWDA DC EV Charger delivers 60kW high-efficiency fast charging in a compact, space-saving design. Ideal for urban and high-traffic locations, it’s engineered to provide reliable performance without compromising on footprint.

RWDA DC EV Charger equipped with a 43-inch FHD advertising screen, opens up a new revenue stream for operators. While vehicles charge, the screen can display dynamic ads—turning wait time into business opportunities.

Guaranteed safe checkout
ecom-no-replace-aSLjKik1k3trust-dron

  • Fast-Delivery Guarantee

  • 1% Credit Reward

  • 14-Day Returns

  • Highly Recommended

RUERTU ROP2000+ROB2000 Expandable Power Station 4096Wh | 2200WRUERTU ROP2000+ROB2000 Expandable Power Station 4096Wh | 2200W

RUERTU ROP2000+ROB2000 Expandable Power Station 4096Wh | 2200W

$1,999.00 $2,599.00
Details
RUERTU RO2001 PLUS Portable Power Station 2000Wh | 2400WRUERTU RO2001 PLUS Portable Power Station 2000Wh | 2400W

RUERTU RO2001 PLUS Portable Power Station 2000Wh | 2400W

$859.00 $1,199.00
Details
RUERTU RO5000 PRO Portable Power Station 5120Wh | 4000WRUERTU RO5000 PRO Portable Power Station 5120Wh | 4000W

RUERTU RO5000 PRO Portable Power Station 5120Wh | 4000W

$2,999.00 $3,950.00
Details
RUERTU RO1200 Portable Power Station 960Wh | 1200WRUERTU RO1200 Portable Power Station 960Wh | 1200W

RUERTU RO1200 Portable Power Station 960Wh | 1200W

$539.00 $699.00
Details

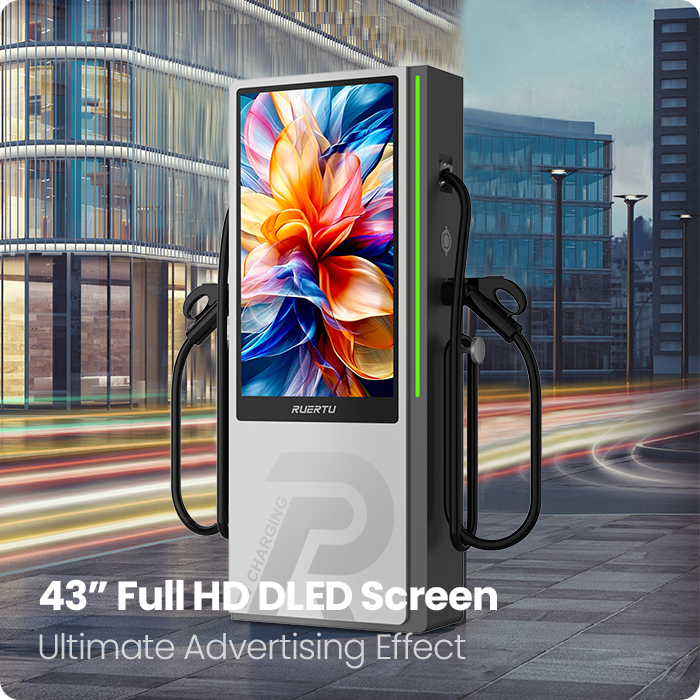

43'' FHD Display
The RWDA DC EV charger is equipped with a 43-inch Full HD advertising screen that displays visually stunning dynamic adverts while charging, turning waiting time into business opportunities.
Upgrade-friendly Design
RWDA is always ready for technological updates and has a multi-modular design that allows for the fastest and easiest way to provide subsequent upgrades to the equipment.
Intelligent Management
Equipped with intelligent monitoring, operation, and maintenance functions, real-time data tracking, and automatic diagnosis of the equipment, helping you to efficiently manage and maintain the equipment.

Descriptions

Specifications

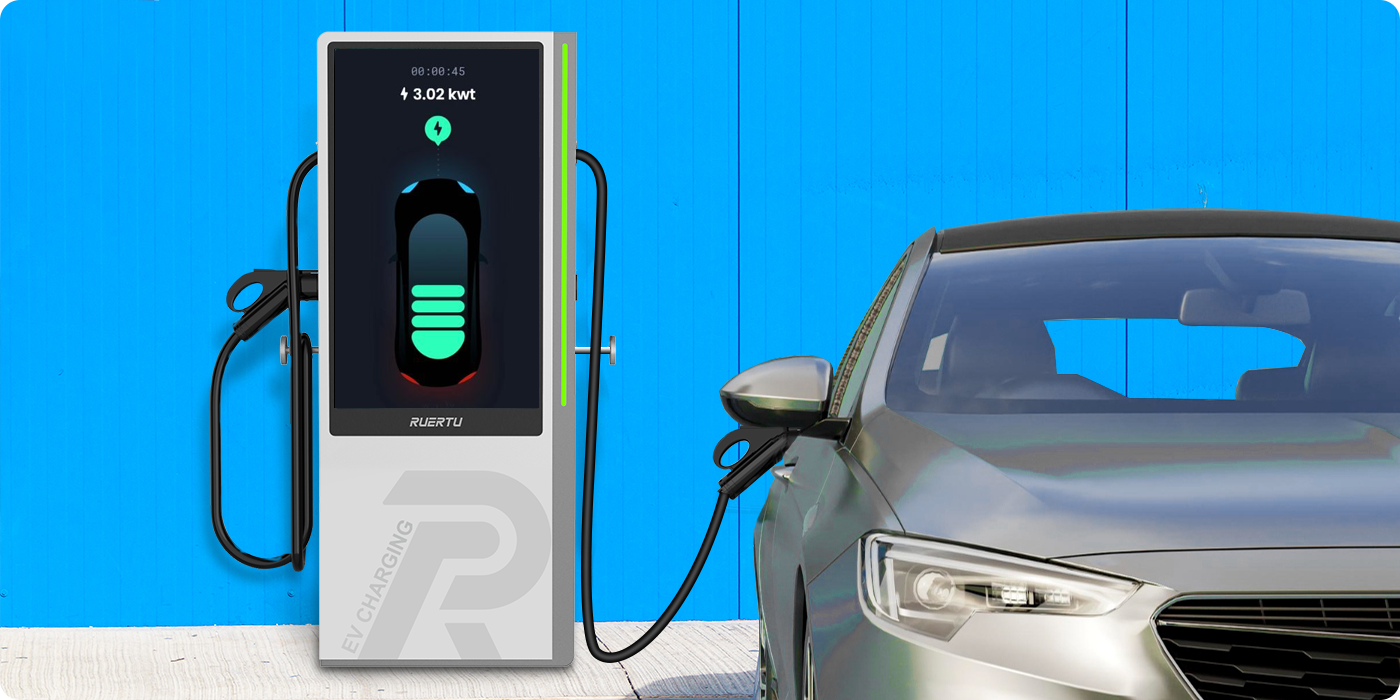

Dynamic Efficient Output


The RWDA provides up to 60 kW of power with a maximum current of 100A, creating more opportunities for shorter charging times and optimizing charging

services through dynamic load distribution to enhance the efficiency of charging stations.

Optimising Advertising Experience


The RWDA is equipped with an integrated 43-inch media screen. Use the media screen to engage with customers by sharing customized content in static or video formats, enabling advertisers to achieve optimal results.

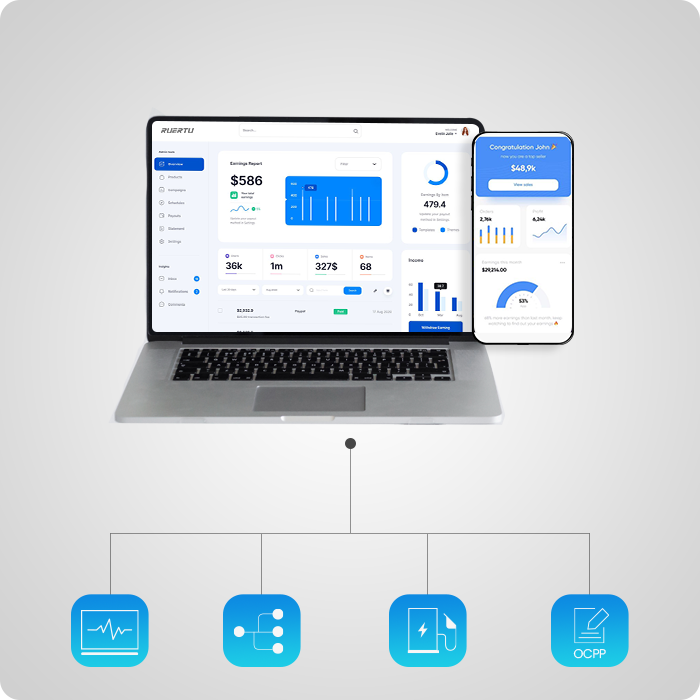

Advanced Charging Station Operation Platform


RWDA is perfectly adapted to RUERTU operation management platform that manages all aspects of charger operations. It allows for real-time monitoring, reporting, energy management, and problem detection, ensuring optimal performance and energy efficiency for operators.

Better Product Benefits


The rare 43-inch advertising screen in DC charger can bring additional advertising services for RWDA revenue,

make the RWDA is not just a Powerful DC charger but also external publicity, expanding the influence of media products.

Energy-economic Charging Solutions


The RWDA provides a cost-effective and energy-efficient charging solution.

Its scalable hardware and advanced technology help operators reduce grid expenses and extend equipment lifespan,

resulting in significant savings and improved charging infrastructure.

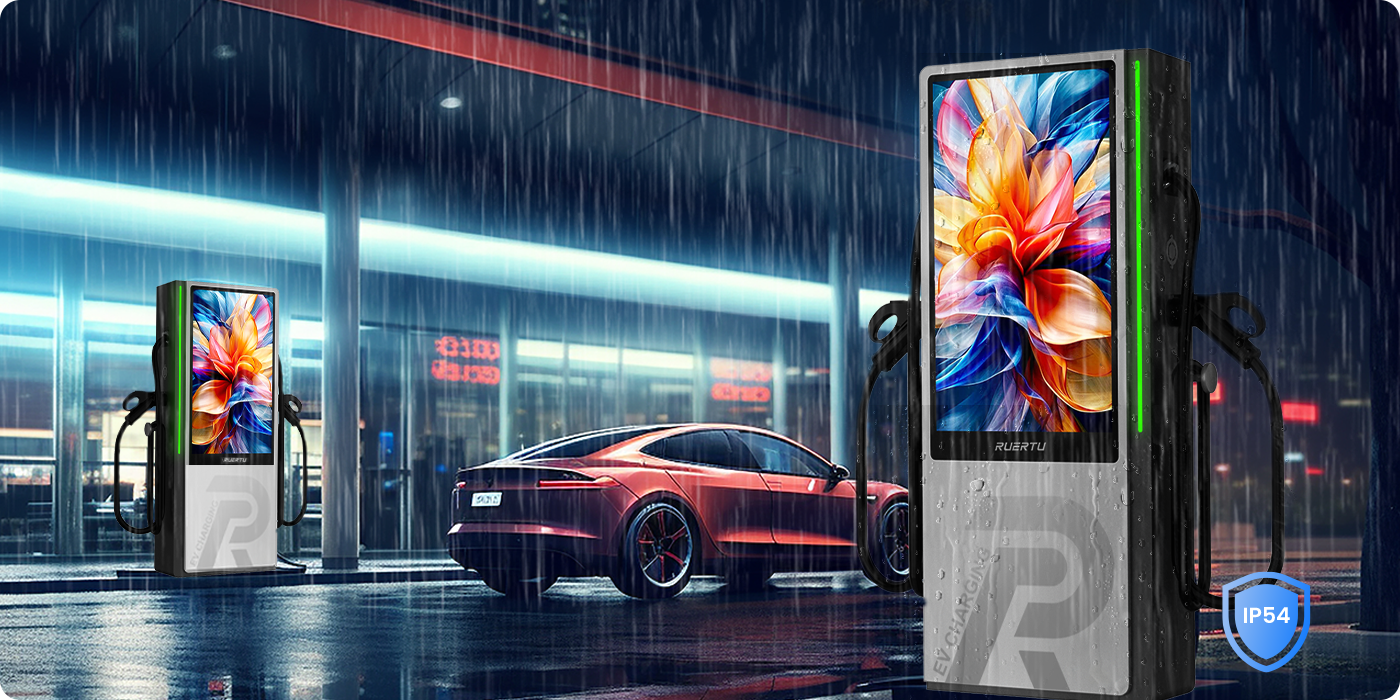

Comfort and Safety Everywhere


Multiple ultra-high safety protections, IP54 protection degree and conspicuous three-color breathing indicator,

these consider designs allowing the RWDA Charger provide ultimate safety and protection in a comfortable use situation

Hassle-free Maintenance


RWDA's power supply modules feature a user-friendly design that enables quick one-person upgrades.

Meanwhile, our integrated software platform delivers real-time system monitoring and automated diagnostics,

significantly reducing maintenance complexity through intelligent diagnostics solutions.

Model RWDA60
Technical Parameters
Rated Power 60kW
HMI 10.1-inch Touch Screen, Resistant to High and Low Temperatures
Charging Method Swipe Card / QR Code / App Activated, etc.
Communication Interfaces Internal Interfaces: RS485 Bus; RS232 Bus; CAN Bus, External Interfaces: 485 Bus; Ethernet; OCPP
Connector Type CCS2; CCS1; GB/T (Optional)
Communication Protocol OCPP-1.6J
Input Parameters
Input Voltage 400Vac ± 15%; 3P + N + PE
Input Current ≤ 98A
Input Frequency 50 ± 1 Hz
Efficiency ≥ 95%
Power Factor ≥ 99%
THD ≤ 5%
Output Parameters
Output Voltage Range 200 ~ 1000Vdc
Max Output Current/td> 100A * 2
Constant Power Range 300 ~ 1000Vdc
Charging Module Power 30kW
Number of Charging Modules 2PCS
Voltage Regulation Accuracy ≤ ±0.5%
Current Regulation Accuracy/td> ≤ ±1%
Ripple Coefficient ≤ 1% (Peak)
Current Sharing Imbalance ≤ ±5% (Typical Value 3%, 50% ~ 100% Rated Load)
Display Parameters
Display Size 43-inch
Display Area 940.896 (H) x 529.254(V) mm
Optimal Resolution 1920 x 1080
Brightness 1500 cd / m²
Refresh Rate 60 Hz
Contrast Ratio 1200 : 1
Viewing Angle 178° (H) x 178°(V)
LED Type DLED
Structural Parameters
Installation Floor Installation
Alignment Lower In and Out
Charging Cable Length 5m
Cooling Method Forced Air Cooling
Environmental Parameters
Operating Temperature -25°C ~ +50°C
Storage Temperature -40°C ~ +70°C
Relative Humidity ≤ 95%
Atmosphere Pressure 90KPa ~ 100KPa
Altitude ≤ 2000m
Protection Degree IP54
Protection Mechanism Over / Under Voltage Protection; AC Phase Loss Protection; Short Circuit Protection; Reverse Battery Protection; Access Control Open Protection; Excessive Temperature Protection; Insulation Fault Protection; Abnormal Connection Protection; Communication Fail-safe Protection; Emergency Stop Fail-safe Protection, etc.
Reliability
MTBF ≥ 8000h
Executive Standards EN/IEC62196-2:2016
Dimensions and Weight
Product Size 1011 x 751 x 1757 mm
Weight 225kg
